Specifications

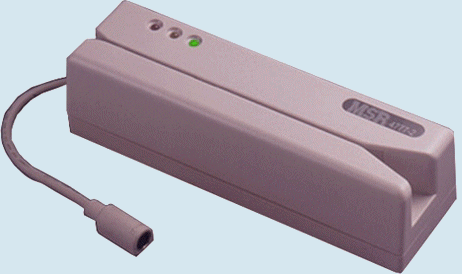

CARD WRITER/READER
Power
- 12VDC, 10AMP, Read: 250mA (Typ.), 370mA (Max)
-
Write: 750mA (Max.)
-
Write Triple Track: 690mA
-
Write Dual Track: 550mA
-
Write Single Track: 420mA
Output Baud Rate 9600, 8 bit Character,
Non-Parity
Dimensions 200mm (L) x 55.5mm (H) x 59mm (W)
Cable 5 Ft (1.5m)
Connector DB-9 Famale
Card Density encoding/Decoding : 75~210 BPI
Configurations-
Single Track : Track 1,2 or 3, JIS-II
-
Dual Track: Track 1&2 or2&3
-
Tripe Track: Track 1&2&3
Encoding Energy 300-600 Oersted
Recording Capability-
Track 1 (TATA) : 79 characters
-
Track 2 (ABA) : 40 characters
-
Track 3 (THRIFT) : 107 characters
-
JIS-II : 69 characters
