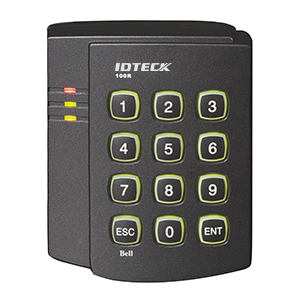

RF / PIN Single Door Access Controller

STAR 100R is an intelligent Single Door Access Controller based on powerful 8 bit microprocessor to meet a simple and cost- effective access control market requirement.
User friendly device allows you to register max.128 ID numbers (512 ID numbers option)and easy to add or delete ID numbers.
Built-in 4 ¡±(10cm)RF reader gives you various operating modes such as RF only,RF +PIN(4~6 digit).
Independent 5 Input ports can detect door status and PIR sensor or Fire alarm and you can program related output sources and activate timing from the front keypads.
System will alarm in case of number of times wrong number entry and Tamper switch opens and one TTL output connected to Auto-dialer (option)will make a call to the pre-defined phone numbers (max.4ch) and reports the alarm to Police,Fire station and/or to your cellular phone by voice message.
All event transaction reports to the host computer by RS232 communication.
The modern design and easy installation will provide you an accurate access control for single door and 3 LED indicators informs you all system operating status at real time.
STAR100R will give you field proven reliability and cost-effective solution anywhere the access controls and high security is required.


Features
Single Door Access Controller
128 Card holders (512 optional)
Built-in 4¢©(10cm) RF reader
RF only or RF+PIN (4~6 digit) operation modes
External reader port for Exit
Communication via RS232
Independent 5 inputs and 4 outputs including 2 output relays
All I/Os and operating Times user front programmable
Door lock and unlock functions
Setting for Safe / Secure mode
Try-out error Alarm
Optional 4ch Voice Auto-dialer
3 LEDs for system operation status
Back lighting on keypad
100% Weather Proof

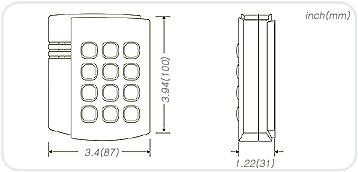

Dimension

100R dimension
Specifications
CPU  Dual 8bit Microprocessor
Memory Program memory: 12KB ROM,
Data memory: 512 Bytes FLASH memory
Read Range IDK50 : 2 inch(5cm)
IDC170 : 4 inch(10cm)
IDC80 : 4 inch(10cm)
Reading Time 30ms
Card Holders
128 card holders (512 optional)
Reader Ports 1 External reader port (26 bit Wiegand format)
Input /Output ports Inputs : 5ea, Relay Output : 2ea(COM, NO, NC),
TTL Output :1ea, Chime bell output : 1ea
Communications RS232, Baud rate: 9600bps
Keypads 12 numeric keypad with back lighting
Self Diagnostic Yes
LED indicators 3 LEDs (Red, Green, Yellow)
Power DC12V, max. 200mA
Operating Environment -35°C ~ +65°C, 10% ~ 90% humidity
Reset Watch-dog timer & power on reset
Color Dark pearl gray
Weight 210g (0.464 lbs)
