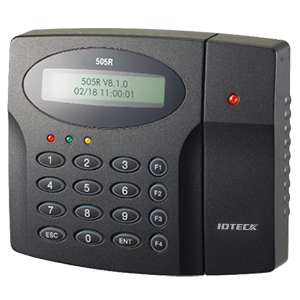

STAR505R is an intelligent Single Door Access Controller based on powerful 8 bit Microprocessor to meet a simple and cost-effective access control market requirement.
It is designed for low cost but high security as well as convenience and reliability.
User friendly device allows you to register max. 10,000 ID numbers and easy to add or to delete ID numbers and it has 2,500 transaction buffers.
Built-in 10 cm RF reader and PIN pad gives you various operating modes such as RF only, RF + PIN(4 digit).

STAR505R has an additional RF reader port for Single door Anti-pass back technology.
Independent 4 Input ports can detect exit button, door status, PIR sensor, Fire sensor and you can program related output sources and activate timing from the front keypads.
It is possible to use as standalone or network communication via RS 232/RS 422 All control setting values such as ID umbers, Inputs/Outputs, Real time clock and Time schedule can be Download/Upload from/to the host computer and all event transaction reports to the Host.
The modern design and easy installation will provide you an accurateaccess control for single door and 3 LED indicators informs you all system operating status at real time.
STAR505R will give you field proven reliability and cost-effective
solution anywhere the access controls and high security is required.
