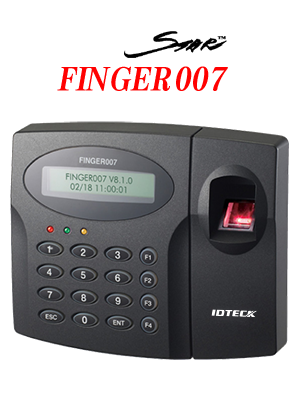

finger 007

Finger007

FINGERPRINT IDENTIFICATION TIME & ATTENDANCE/ ACCESS CONTROLLER

STAR FINGER007 is an intelligent Single Door Access Controller based on dual 8 bit microprocessors to meet extremely high security level and cost effective access control market demand.
It is designed for the highest security access control by built-in proximity reader and finger print module and for high reliability as well as easy operation.
User friendly device allows you to register 720 proximity cards and personal finger prints (optional 4,500 users maximum)and easy to add or delete user ID and it has 5,200 transaction buffers.
Built-in 10cm proximity reader and finger print module gives you a various access modes in any combination of proximity cards,PIN numbers and finger prints and you may change access mode by time schedule.
STAR FINGER007 has an additional proximity reader port for single door anti-pass back application.
Independent 4 Input ports provide you to connect exit button, door contact,PIR sensor and Window breakage sensor and you can program related output sources and activate time from built-in keypads.
It is possible to use the device standalone or network communication via RS232C/RS422 communication port.
Two FORM-C relay outputs are built-in with anti-magnetic protection and two TTL outputs are provided for various applications such as to activate Auto-dialer and to control other devices.
All control setting values such as RFID,Finger prints data,Input and Output configurations,Real time clock and Time schedule can be Download/Upload from/to the host computer and all event transaction data stored in the buffer and reports to the host computer.
The compact design and various operating modes will provide you an accurate access control with the highest security level of access.
STAR FINGER007 will give you a perfect access control and excellent solution anywhere the highest security level of access is required.


Features
Biometric Single Door Access controller
Dual function for Access Control and Time & Attendance
720 Finger prints holders/5,200 Event buffer (4,500 Finger prints optional)
Built-in 4(10cm) RF reader and Finger Print module
Standalone/Network communication via RS232/RS422(max. 32ch)
RF only, RF+Finger, PIN+Finger, RF+PIN+Finger
Independent 4 inputs /4 outputs including 2 FORM-C Relay outputs
Self-diagnostic function
External reader port for Anti-pass back operation
Dual Tamper switches
10 Time schedules and 10 Holiday schedules
Back lignhting on keypad

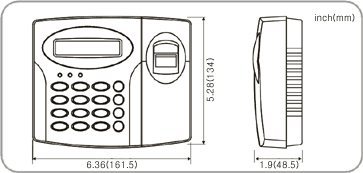

Dimension

finger 007 dimension
Specifications
CPU  32bit Strong-Arm and dual 8 bit microprocessors
Memory Program memory: 64KB ROM, Data memory: 128 KB RAM,
Finger module: 1MB Flash (optional 4MB)
Read Range IDK50 : 2 inch(5cm)
IDC170 : 4 inch(10cm)
IDC80 : 4 inch(10cm)
Reading Time Card (30ms), Finger print (0.5 sec)
Card Holders/Event buffers
720 Finger/Card holders
Optional 4,500 finger/Card holders, 5,200 Event buffers
Reader Ports/Data format Built-in 4¢©(10cm) RF reader / 26bit Wiegand format External reader port / 26bit Wiegand format for Anti-pass back
Input /Output ports Isolation inputs: 4ea
Outputs: 2ea FORM-C Relay(C, NO, NC) rating 2A max.TTL output: 2ea
Communications RS232C/RS422 port, Address selectable up to 32ch
Baud rate: 4800bps,9600bps(default), 19200bps, software programmable
LCD Display 1 x LCD module, 2lines x16ch, 65.6X13.8mm view area
Keypads 16 numeric keypad with back lighting
Anti-pass back Yes
Self Diagnostic Yes
LED indicators 3 LEDs (Red, Green, Yellow)
Power DC12V, 350mA
Operating Environment -35°C ~ +65°C, 10% ~ 90% humidity
Reset Watch-dog timer & power on reset
Color Dark pearl gray
Weight 547g (1.20 lbs)
