MC67


מסופון Android מדגם MC67 מבית Symbol Motorola

מסופון סלולרי אנדרואיד, 4G או GSM, מוקשח ומתאים לעבודה, סורק ברקוד מובנה 2D

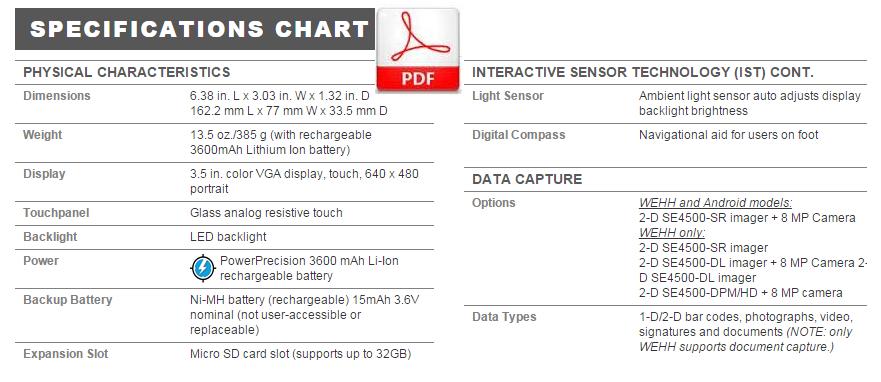

מפרט טכני - הורד PDF
מסופון Android MC67

Specifications

COMMUNICATIONS

WLAN radio type
Tri-mode IEEE® 802.11a/b/g/n

WWAN
GSM/EDGE (850, 900, 1800 and 1900 MHz), UMTS/HSDPA and HSUPA (850, 900, 1900 and 2100 MHz)

WWAN radio type
4G HSPA+

WLAN
Push-to-Talk (PTT) ready; VoIP ready

Security
WLAN: WPA2 (Personal or Enterprise); 802.1x; EAP-TLS; TT LS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PE AP (TLS, SCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC); CCXv4; FIP S 140-2

Voice
WLAN Radio: Voice-over-IP ready, Wi-Fi™-certified, IEEE 802.11a/b/g/n direct sequence wireless LAN, Wi-Fi Multimedia™ (WMM and WMM-PS) Zebra Voice Quality Manager (VQM)

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR)

GPS
Integrated standalone and Assisted-GPS (A-GPS): SUPL 1.0

PERFORMANCE CHARACTERISTICS

Processor (CPU)
Dual core OMAP4 1GHz processor

Memory (Flash/RAM)
GSM only models:
WEHH: 512 MB RAM/ 2 GB Flash, 1 GB RAM/8GB Flash; Android: 1 GB RAM/8 GB Flash

Operating system (OS)
GSM only models: Choice of Microsoft® Windows Embedded Handheld 6.5 Professional or Android 4.1

External interfaces
USB 2.0 high speed (host and client)

Data capture options
WEHH and Android models:
8 MP Camera

WEHH only:
2D SE4500-SR imager
2D SE4500-DL imager + 8 MP Camera
2D SE4500-DL imager
2D SE4500-DPM/HD + 8 MP camera

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD)
6.38 in. L x 3.03 in. W x 1.32 in. D / 162.2 mm L x 77 mm W x 33.5 mm D

Weight
13.5 oz./385g (with rechargeable 3600mAh Lithium Ion battery)

Display type
3.5 in. color VGA display, touch, 640 x 480 portrait

Touch panel
Glass analog resistive touch

Keypad option
GSM only models:
WEHH: Numeric, QWERTY, AZERTY, QWERTZ, PIM, DSD
Android: Numeric, QWERTY and DSD

Expansion slot
Micro SD card slot (supports up to 32GB)

Notification
Audible tone plus multi-color LEDs

Audio options
Speaker, Dual microphone support with noise cancellation, Wireless (Bluetooth) headset support, Vibration feedback

Rugged
Yes

Zebra Interactive Sensor Technology (ISTT)
3-axis accelerometer that enables motion-sensing applications for dynamic screen orientation and power management

POWER

Battery
Rechargeable Lithium Ion 3.7V, 3600 mAh battery

Backup battery
Rechargeable Ni-MH battery, 15 mAh, 3.6 V nominal (not user-accessible or replaceable)

REGULATORY SPECIFICATIONS

Laser safety1
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

USA: FCC Part 15, Class B
Canada: ICES-003 Class B
EU: EN55022 Class B, EN 55024, EN 301 489-1, EN 301 489-3, EN 301 489-7, EN 301 489-17, EN 301 489-24, EN 60601-1-2, EN 50121-3-2, EN 50121-4
Australia: AS/NZS CISPR 22

Electrical safety
IEC/UL/CSA/EN 60950-1

Environmental
RoHS/WEEE compliant

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C
Canada: RSS-102
EU: EN 50360; EN 62311
Australia: Radiocommunications Standard 2003

WLAN and Bluetooth (PAN)
USA: FCC Part 15.247, 15.407
Canada: RSS-210
EU: EN 300 328, EN 301 893
Australia: AS/NZS 4268

WWAN
Global: 3GPP TS 51.010, 3GPP TS 34.121, 3GPP TS 34.123, GCF and PTCRB approved
USA: FCC Part 22, Part 24
Canada: RSS-132, RSS-133
EU: EN301 511, EN301 908
Australia: AS/ACIF S042.1, 3 & 4

USER ENVIRONMENT

Operating temperature
-4° F to 122° F/-20° C to 50° C

Storage temperature
-40° F to 158° F/-40° C to 70° C

Drop specification
Multiple 8 ft./2.4 m drops per MIL-STD 810G at room temperature; 6 ft./1.8 m across the operating temperature per MIL-STD 810G

Tumble specifications
2,000 1.6 ft./0.5 meter tumbles at room temperature; per applicable IEC tumble specifications

Environmental sealing
IP65 and IP67 per IEC specification

Shock/Vibration
-40° F to 158° F/-40° C to 70° C rapid transition ; 4g’s PK Sine (5Hz to 2KHz); 0.04g2/Hz Random (20Hz to 2KHz); 60 minute duration per axis, 3 axes

Electrostatic discharge (ESD)
± 15kv Air discharge, ± 8kv direct discharge, ± 8kv indirect discharge

Humidity
5 to 95% non-condensing
