מסופון אנדרואיד, מסך מגע איכותי וגדול. מוקשח ומתאים
לעבודה. מוגן מים, עמיד לנפילות ומכות, מתאים לעבודה בחוץ בכל מזג אויר.
בטריה חזקה נשמרת לאורך זמן. סורק ברקוד מובנה לסריקה מהירה ונוחה. מעבד
חזק ועוצמתי.
WIFI, WLAN, LTE GSM, BLUETOOTH, NFC ועוד
Specifications
WIRELESS COMMUNICATIONS
Local Area Network (WLAN)
IEEE 802.11 a/b/g/n;
Wi-Fi Security Standards: WEP, WPA/WPA2 PSK,
802.1x EAP Methods: PEAP/MSCHAPV2, PEAP/GTC,
TLS, TTLS/PAP, TTLS/MSCHAP, TTLS/ MSCHAPV2,
TTLS/GTC, PWD
Personal Area Network(WPAN)
Bluetooth® wireless technology v4.0 - Dual
Mode, supporting Classic Bluetooth and BLE
NFC Communication NFC communication between device and dockent
DECODING CAPABILITY
1D / Linear Codes
Auto discriminates all standard 1D codes including
GS1 DataBar™ linear codes.
2D Codes
Aztec Code, Data Matrix, MaxiCode, PDF417,
MicroPDF417, Micro QR Code, QR Code
Postal Codes
Australian Post, Japanese Post, KIX Code, Royal Mail,
USPS Intelligent Mail, USPS PLANET, USPS POSTNET
Digital Watermarking Supports Digimarc® Barcode (optional)
ELECTRICAL
Battery
Replaceable battery pack with rechargeable
Li-Ion batteries; 3.7 V; 3,000 mAh (12 Watt-hours)
Wireless Charging
Two charging options: Fast charging or Standard
charging
ENVIRONMENTAL
Drop Resistance
Withstands repeated drops from 1.2 m / 4.0 ft
onto plywood over concrete and 1.5 m / 5.0 ft
onto plywood over concrete with the rubber boot
accessory
Temperature Operating: -10 to 50 ºC / 14 to 122 ºF
INTERFACES
Interfaces
USB 2.0 Client (with standard Micro-USB connector)
SDXC card slot (not user accessible)
SENSORS
Accelerometer 3-Axis accelerometer to detect orientation
Gyroscope Senses angular velocity
Vibration Software programmable
Magnetometer Senses angular velocity

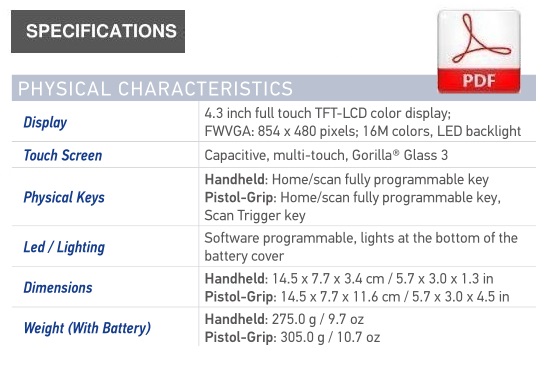

PHYSICAL CHARACTERISTICS
Display
4.3 inch full touch TFT-LCD color display;
FWVGA: 854 x 480 pixels; 16M colors, LED backlight
Touch Screen Capacitive, multi-touch, Gorilla® Glass 3
Physical Keys
Handheld: Home/scan fully programmable key
Pistol-Grip: Home/scan fully programmable key,
Scan Trigger key
Led / Lighting
Software programmable, lights at the bottom of the
battery cover
Dimensions
Handheld: 14.5 x 7.7 x 3.4 cm / 5.7 x 3.0 x 1.3 in
Pistol-Grip: 14.5 x 7.7 x 11.6 cm / 5.7 x 3.0 x 4.5 in
Weight (With Battery)
Handheld: 275.0 g / 9.7 oz
Pistol-Grip: 305.0 g / 10.7 oz
READING PERFORMANCE
Depth of Field
4.3 to 35.0 cm / 1.7 to 13.8 in, depending on bar code density
Minimum Resolution Linear codes at 4 mils; 2D codes at 5 mils
Reading Indicators
Loudspeaker (Polyphonic); Datalogic’s patented ‘Green
Spot’ technology for visual good-read feedback
SAFETY & REGULATORY
Agency Approvals
The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance Complies to EU RoHS
SOFTWARE
Applications
Datalogic’s SoftSpot technology for configurable soft
triggers; Supports Datalogic’s Queue Busting app;
Pre-licensed device and browser lockdown powered
by 42Gears;
Enterprise class PTT offered by Zello
Provisioning Android Zero Touch enrollment
Configuration and Maintenance
Datalogic DXU for device configuration and firmware
upgrade from PC
Development Java and Xamarin SDK available
MDM SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
Terminal Emulation StayLinked SmartTE, Wavelink Velocity
SYSTEM
Memory
System RAM: 2 GB;
System Flash: 16 GB Flash Disk
SD Card: Factory installed option
CPU Qualcomm SnapDragon Quadcore 1.1 GHz
Operating System Android 8.1 (Oreo) with GMS
WARRANTY
Warranty 1-Year Factory Warranty
