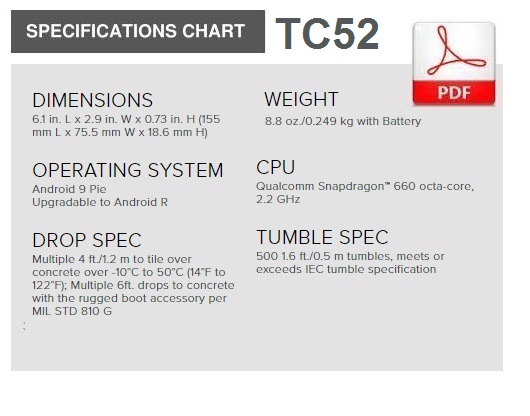

Specifications
Physical Characteristics
Dimensions 6.1 in. L x 2.9 in. W x 0.73 in. H
155 mm L x 75.5 mm W x 18.6 mm H
Weight 8.8 oz./249 g with battery
Display 5.0 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Imager Window Corning Gorilla Glass
Touchpanel
Dual mode capacitive touch with stylus or bare or gloved fingertip
input (conductive stylus sold separately); Corning Gorilla Glass; water
droplet rejection; fingerprint resistant anti- smudge coating
Backlight LED backlight
Power
Rechargeable Li-Ion, PowerPrecision +, 4300mAh/15.48Wh typical, 4.2V
Cell Charge voltage, Cell nominal voltage 3.6V, Improved battery
metrics for better battery management; fast USB charging (500 mA)
Expansion Slot User accessible MicroSD up to 32GB SDHC and up to 256 GB SDXC
SIM Slots TC57 only: 1 nano SIM
Network Connections TC52/TC57: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (Host and Client)
TC57 Only: WWAN
Notification Audible tone; multi-color LEDs; vibration
Keypad On-screen keypad and enterprise keyboard
Voice and Audio
Three microphones with noise cancellation; vibrate alert; Front facing
speaker; Bluetooth wireless headset support; High quality speaker
phone; PTT headset support; cellular circuit switch voice; HD Voice;
and SWB & FB audio
Buttons
Six programmable buttons for maximum flexibility: Back button, dual
dedicated scan buttons, dedicated push-to-talk button and volume
up/down buttons
Performance Characteristics
CPU Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System TC52: Android 9 Pie upgradeable through Android R1
TC57: Android 8 Oreo upgradeable through Android R1
Both with Zebra’s Restricted Mode for control over GMS and other devices.
Memory 4GB RAM/32GB Flash
User Environment
Operating Temp. -4°F to 122°F/-20°C to 50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 95% non-condensing
Drop Specifications Multiple 4 ft./1.2 m to tile over concrete over -10°C to 50°C (14°F to 122°F)
Multiple 6ft. drops to concrete with the rugged boot accessory per MIL STD 810 G
Tumble Specification 500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification
Sealing IP67 and IP65 per applicable IEC sealing specifications
Vibration 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Thermal Shock -40° F to 158° F/-40° C to 70° C rapid transition
Electrostatic Discharge (ESD) +/- 15kv air discharge; +/- 8kv direct discharge;
+/- 8kv indirect discharge
Interactive Sensor Technology (IST)
Light Sensor Automatically Adjusts display backlight brightness
Magnetometer eCompass automatically detects direction and orientation
Motion Sensor 3-axis Accelerometer with MEMS Gyro
Pressure Sensor Automatically detects altitude information for locating (TC57 only)
Proximity Sensor
Automatically detects when the user places the handset against head
during a phone call to disable display output and touch input
Data Capture
Scanning SE4710 imager (1D and 2D) with extraordinary range:
Scan range – Code 39 barcode:
20 Mil: 1.8 in. to 32.0 in./4.5 cm to 81.3 cm
3 Mil: 3.1 in. to 5.6 in./7.9 cm to 14.2 cm
Digimarc support
Camera Front — 5 MP; f/2.0 aperture
Rear — 13 MP autofocus; f/2.2 aperture; flash LED generates balanced white light; supports Torch mode
NFC
ISO 14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode and Card
Emulation via Host. TC57 Only: Card Emulation via Host and UICC
Wireless WAN Data and Voice Communications (TC57 Only)
Radio Frequency Band Supports VoLTE, Carrier Aggregation up to 3DL CA
AT&T FirstNet Ready certification
Verizon PNTM certification
LTE FDD: 700/800/850/900/1800/1900/ AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2, 25/4,66/1/7);
LTE TDD: 1900/2300/2500 (39/40/41,38); UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);
GSM/GPRS/EDGE: 850/900/1800/1900
GPS TC57 only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou, and A-GPS. Supports IZAT™ XTRA
Multimedia Wi-Fi Multimedia™ (WMM) and WMM-PS; Including TSPEC
Wireless LAN
Bluetooth TC52: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO
TC57: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 5GHz 2x2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz):
1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52
56,60,64,100,104,108,112,116,120,124,128,132,136,
140,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2
Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS,
PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD
Certification WFA (802.11n, WMM-PS, 801.11ac, PMF)
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC
Wireless PAN
Bluetooth Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)
Warranty
Subject
to the terms of Zebra’s hardware warranty statement, the TC52/57 Series
is warranted against defects in workmanship and materials for a period
of 1 (one) year from the date of shipment
