| 8 MB Flash /16 MB SRAM memory | |
| USB 2.0 serial connection | |
| 32 bit processor | |
| Thermal transfer or direct thermal printing modes | |
| Large LCD | |
| Drop-in/pop-out media and ribbon loading (see inset) | |
| Tolerant of multiple drops up to 5' to concrete | |
| Sensor detects gap, black bar, media, media width, | |
| door ajar and ribbon Smart battery and ribbon cartridge | |
| Shoulder strap | |
| Peeler | |

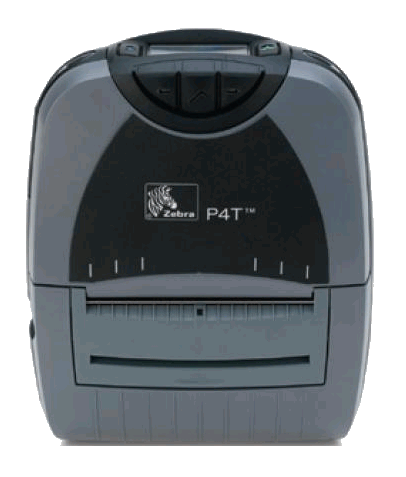

| Printer |
| Maximum label and liner width | 4.12"/104.6 mm |
| Maximum media roll size | Non-RFID media: 2.6"/66 mm O.D. on a.75"/19.1 mm
I.D. core |
| RFID media: 2.6"/66 mm O.D. on a1.375"/34.9 mm I.D.
core |
|
| Media thickness | 3.2 mil to 8.5 mil |
| Media types | Labels and documents up to 4" wide on either
synthetic or paper |
| Width: | 7"/177.8 mm |
| Height: | 8.6"/218.4 mm |
| Depth: | 3"/76.2 mm |
| Weight: | 2.9 lbs/1.32 kg with ribbon and battery |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 8 MB Flash/16 MB SRAM |
| Max print width | 4.09"/104 mm |
| Print speed | DT: 3"/76.2 mm per second |
| TT: 1.5"/38.1 mm per second |
| Ribbon type | Wax; wax/resin |
| Standard length | 98.4'/30 m |
| Ratio | Approximately 2:1 media to roll to ribbon depending on media thickness |
| Ribbon width | 4.33"/110.0 mm |
| Environmental | |
| DT Operating Temp.: | 98.4'/30 m |
| TT Operating Temp.: | Approximately 2:1 media to roll to ribbon depending on media thickness |
| Storage Temp.: | 4.33"/110.0 mm |
| Operating Humidity: | 10% to 90% non-condensing |
| Electrical | 7.4V, 4200 mAh rechargeable Li-Ion battery |
| Agency approvals | EMC: FCC Part 15 and EN55022 Class B limits |
| Radio approval for BT, 802.11b/g & RFID: FCC,Industry Canada | |
| Safety: IEC 60950, NRTL marking for US & Canada | |
| EU: EMC, LVD, R&TTE Directives |
